Discovery V8 UTE Build

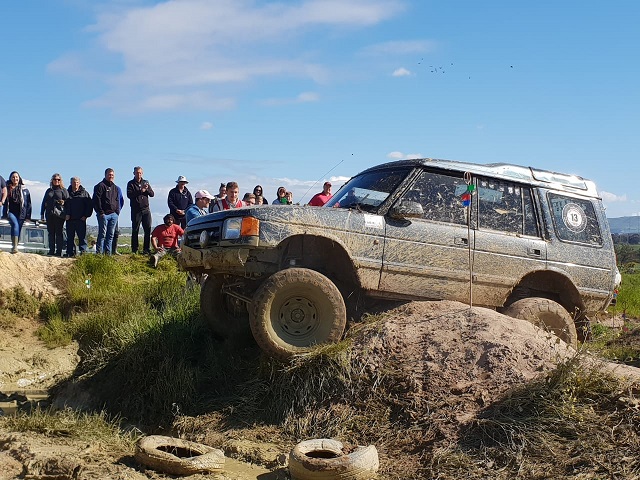

We have had a couple of Discovery and with my second Discovery 1 getting long in the tooth and showing some damage from doing the more than average 4wheeling did we decide that we have not as yet build a UTE.

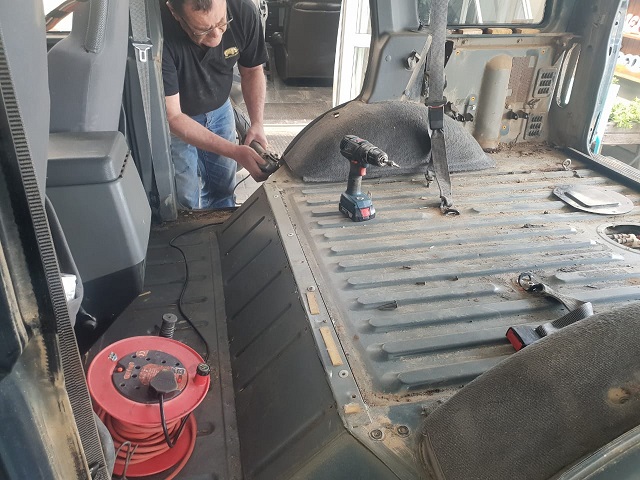

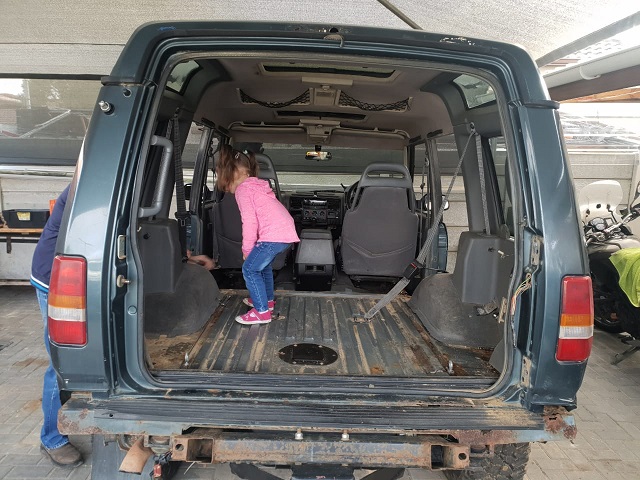

The photos tell a better story however we started by stripping the interior, my granddaughter was very eager to help. We then moved on to decide where to stop the cab and start the load bin.

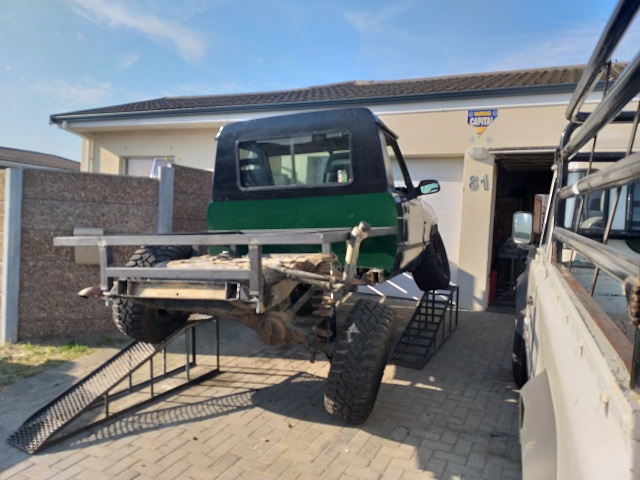

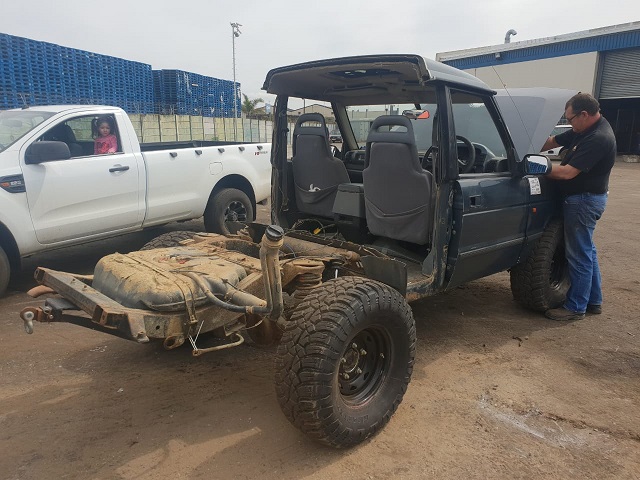

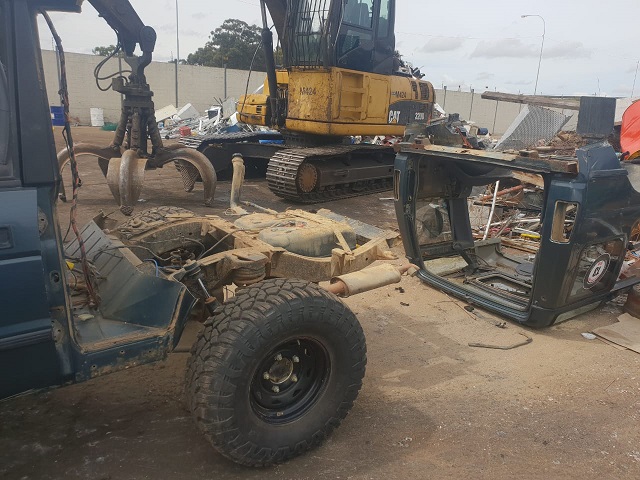

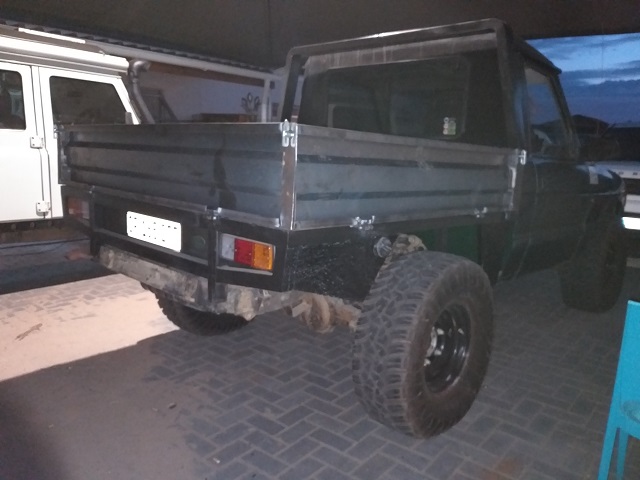

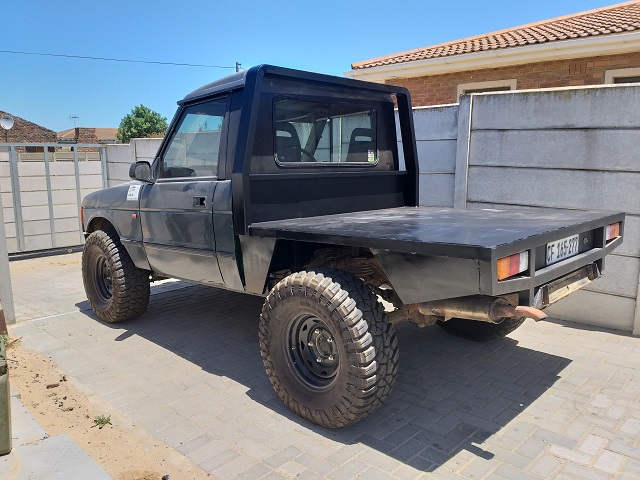

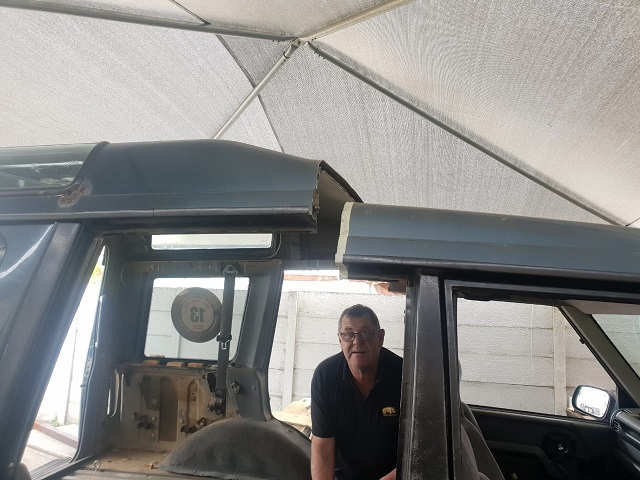

After cutting the body shell did we move on to close the backend to get the pickup look. We decided explicitly that it need to be a flatbed load body with fall down sides. The load body was built from 50*50*2mm square tubing, the load body bed is 2mm sheet metal, and the sides is bent from 2mm sheet metal.

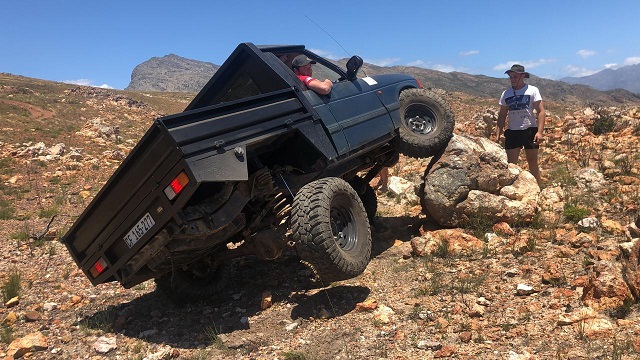

Determining the height from the ground for the load body took some time, it was very important to retain the articulation we have on the rear axle of this car. One of the big benefits of this build was that we were able to reduce the cars weight with 400 kg, and in the process reducing the tip over angle.
