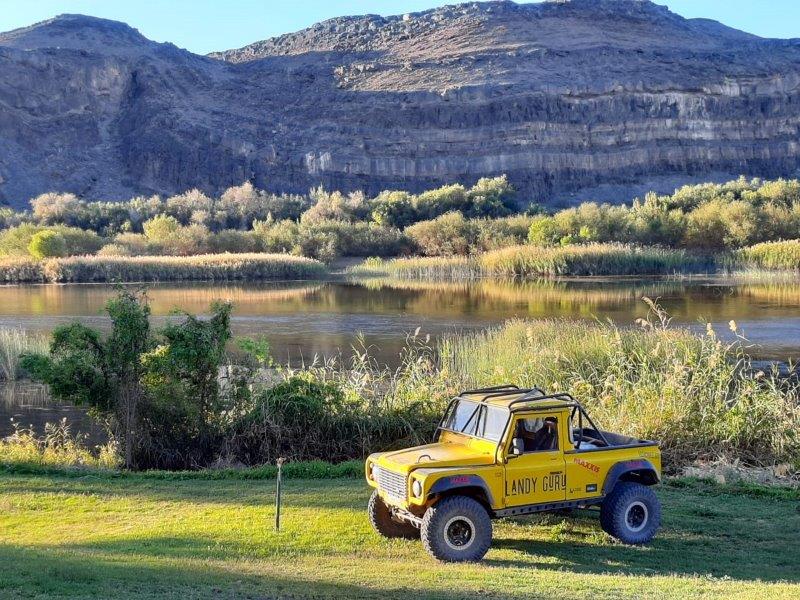

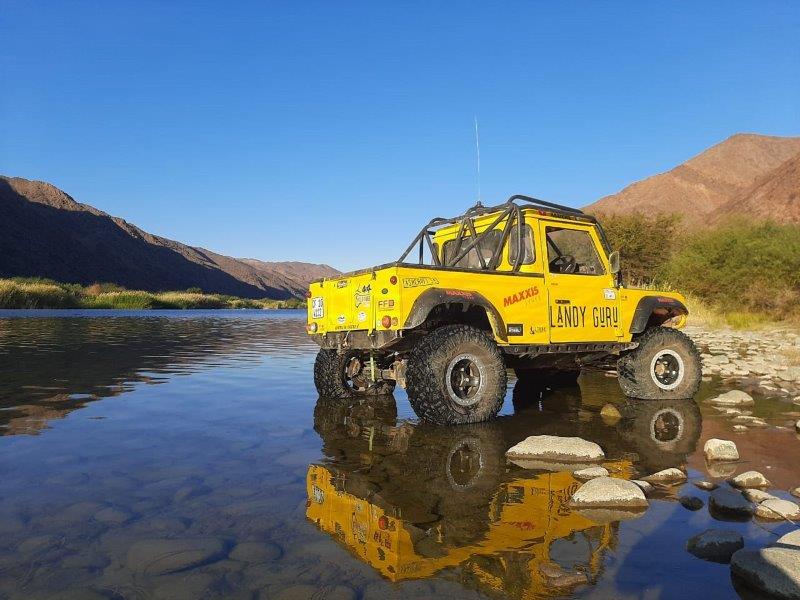

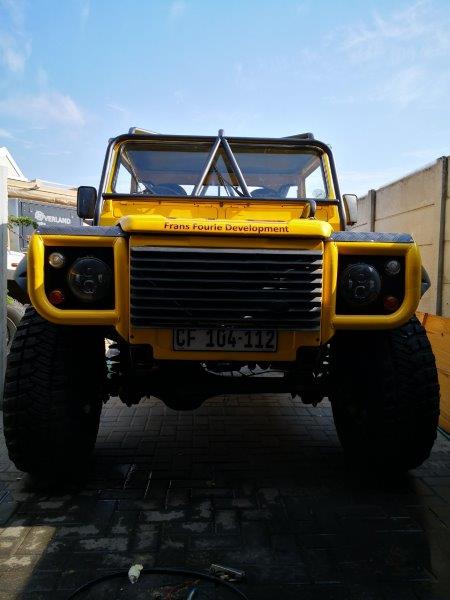

Racing Defender 110 LS3 Build

Jaen Pierre, our oldest son is a racing and 4x4 fanatic and has been driving since the age of 9. After competing in 4x4 competitions from a young age did he decide he should build a high spec roadworthy 4x4 racing car.

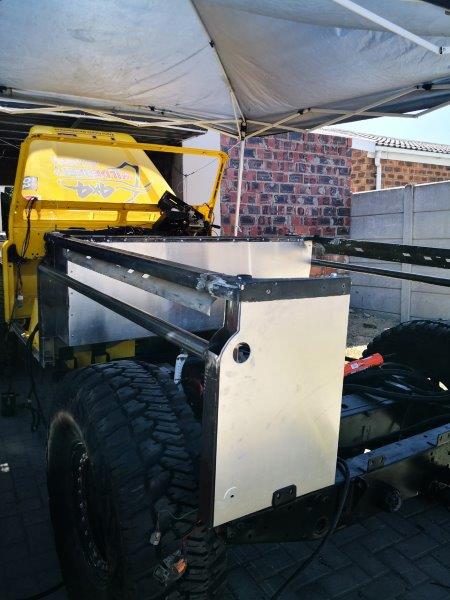

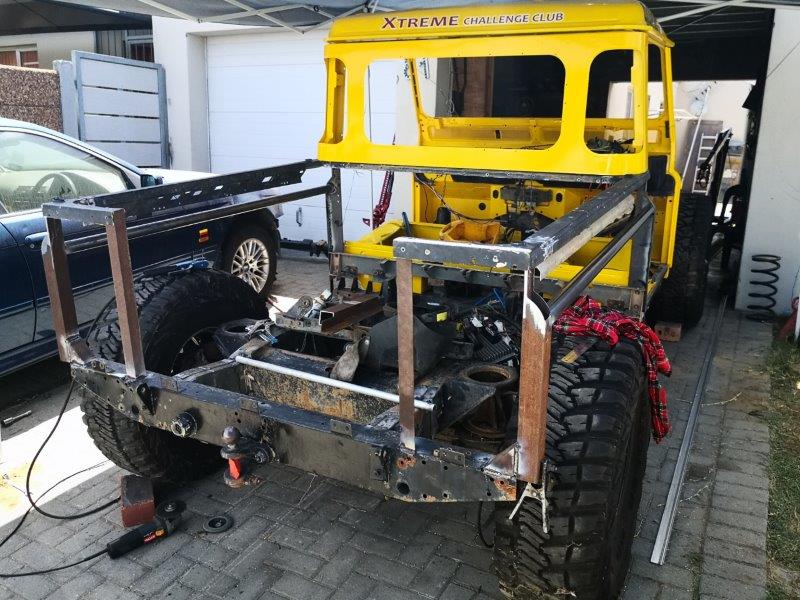

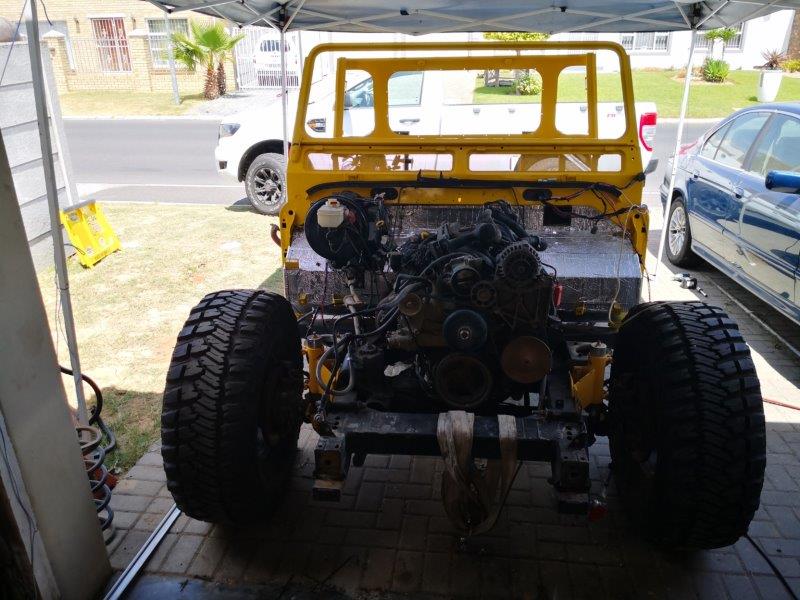

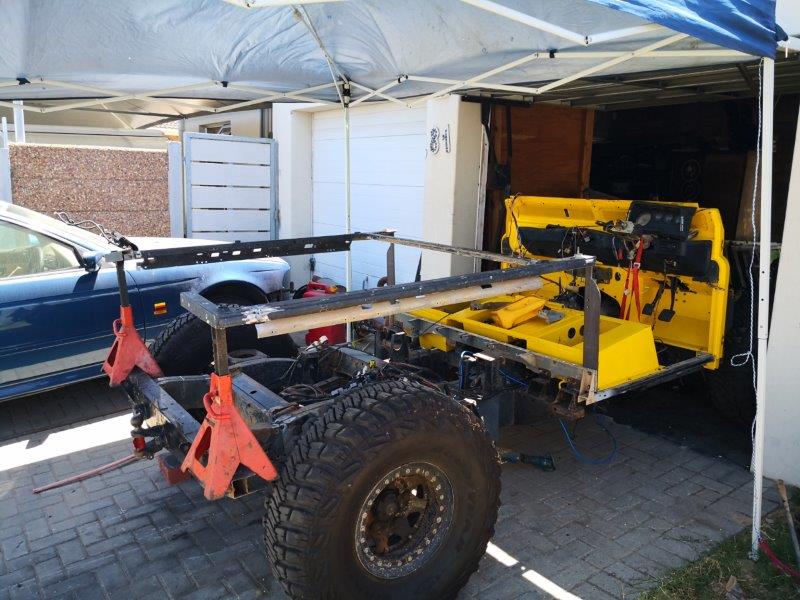

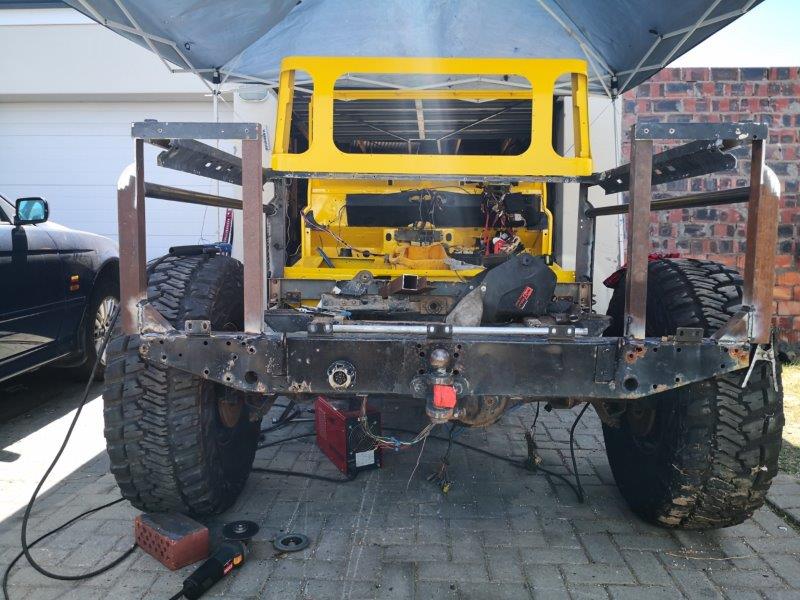

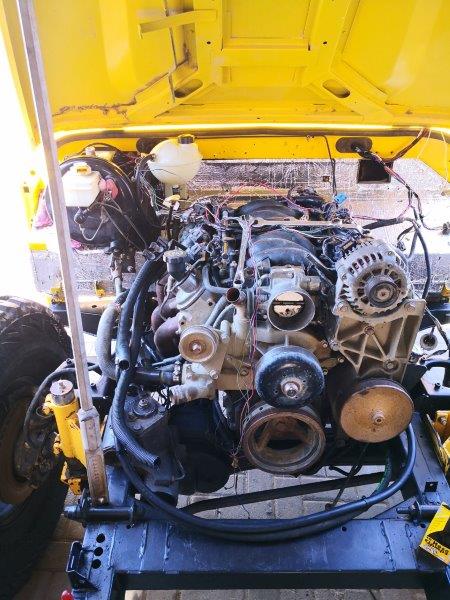

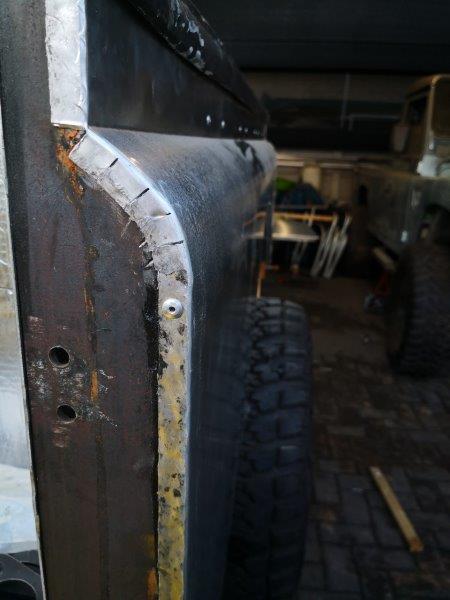

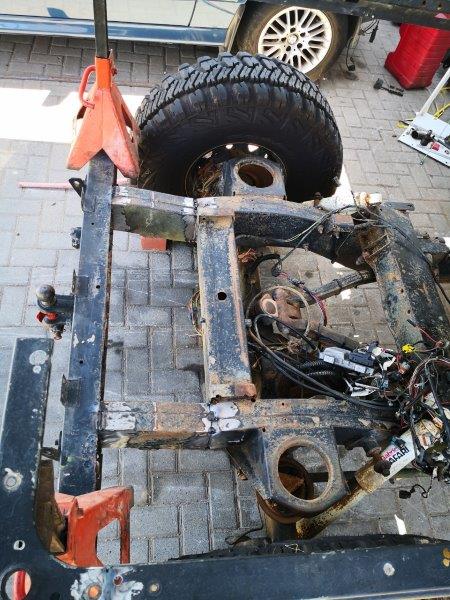

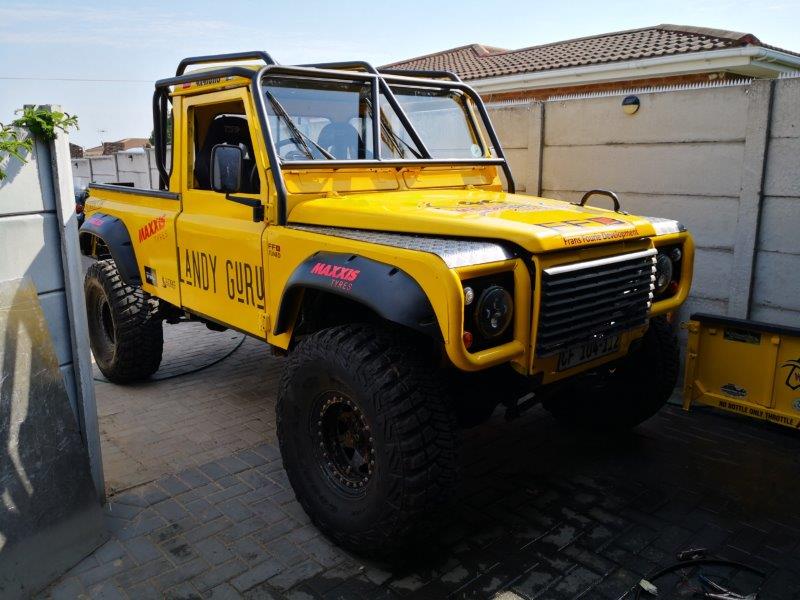

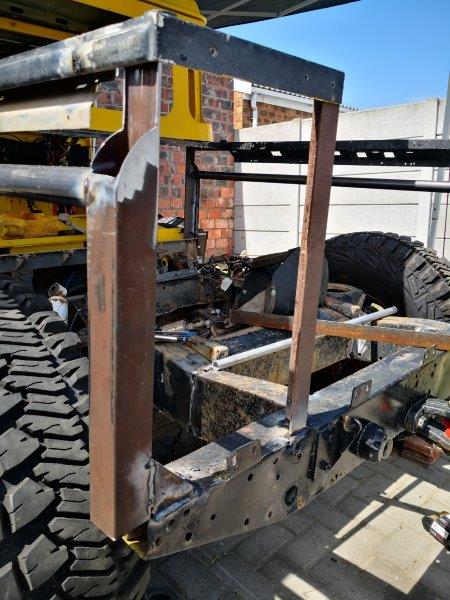

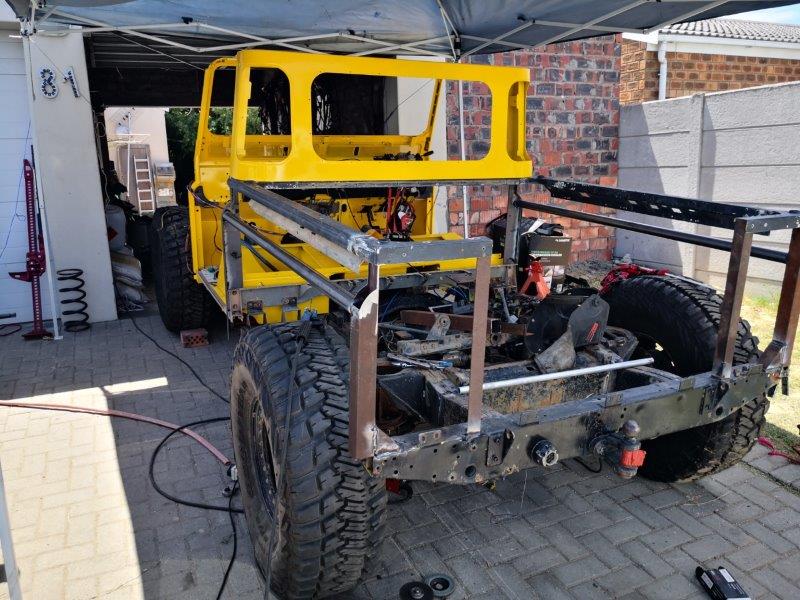

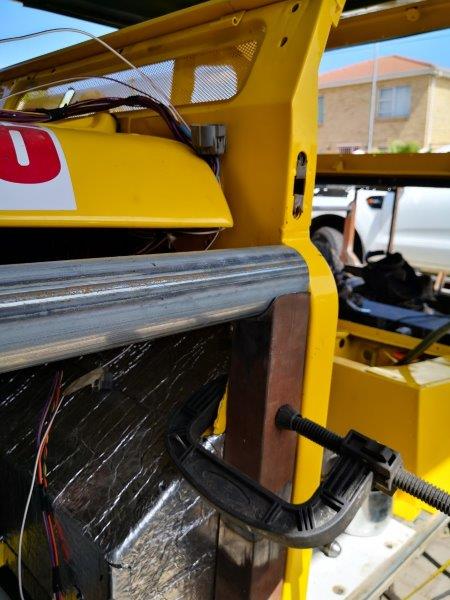

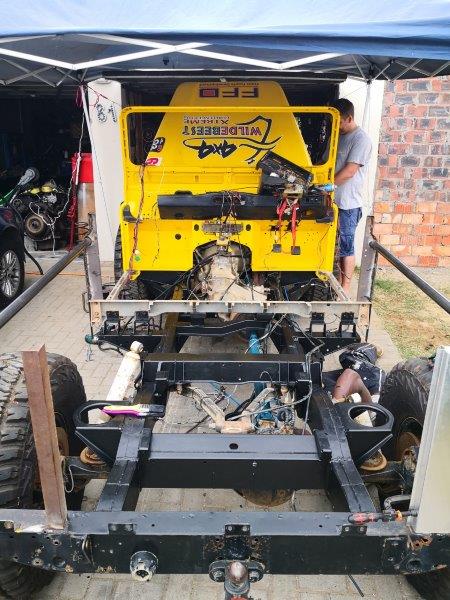

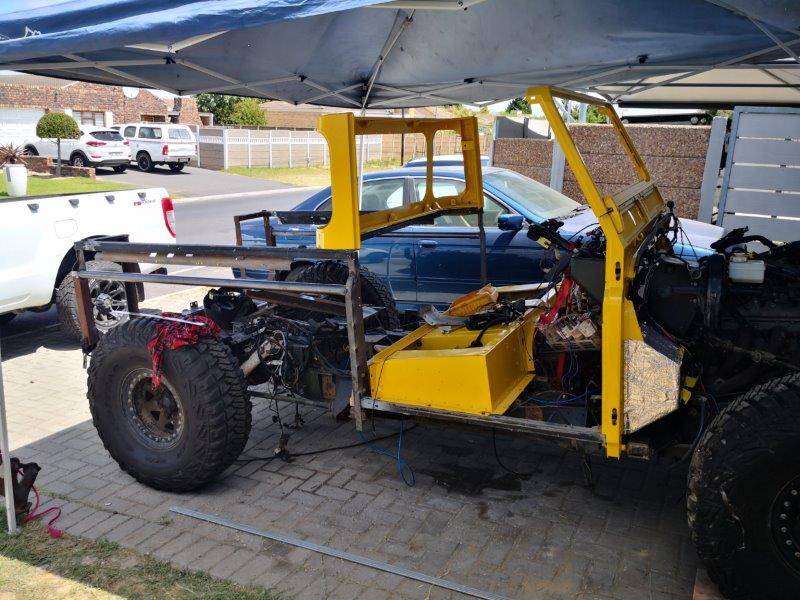

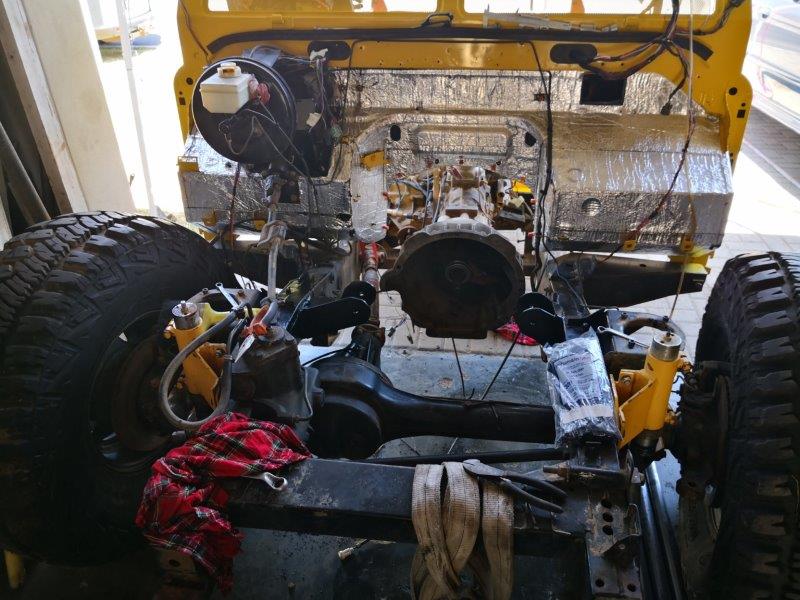

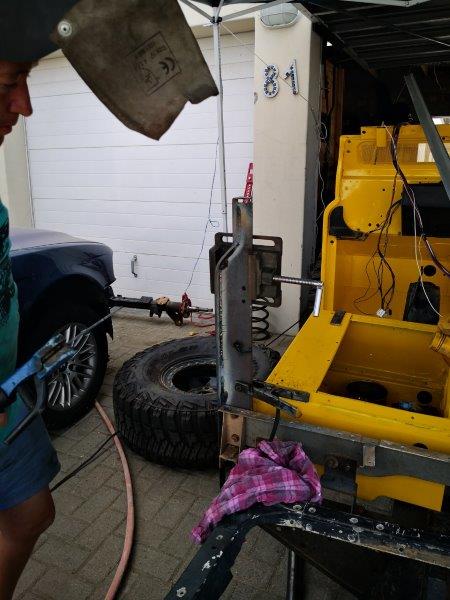

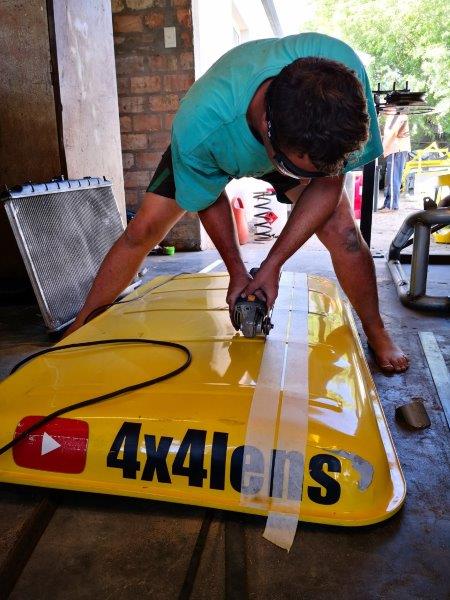

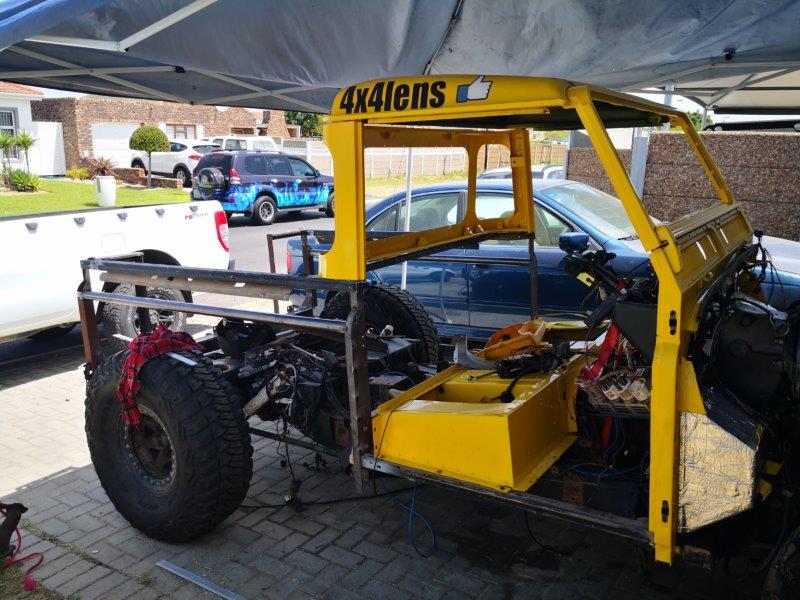

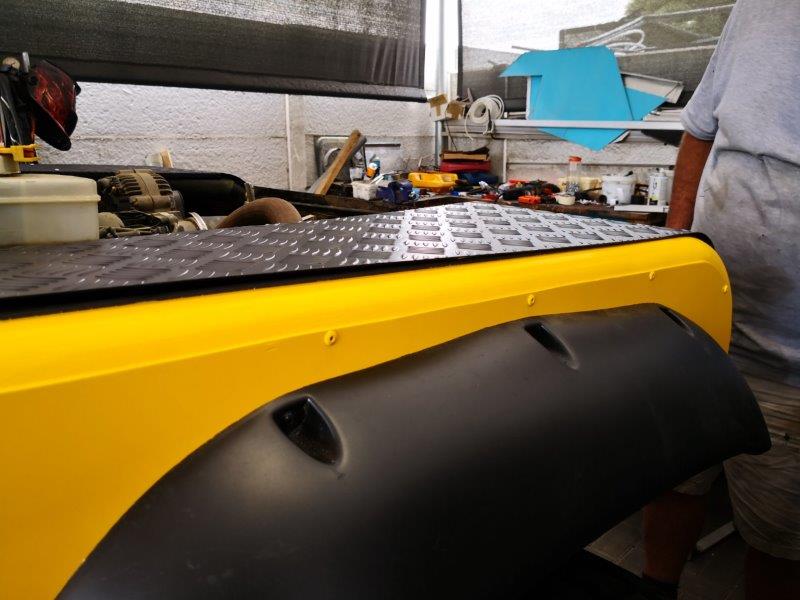

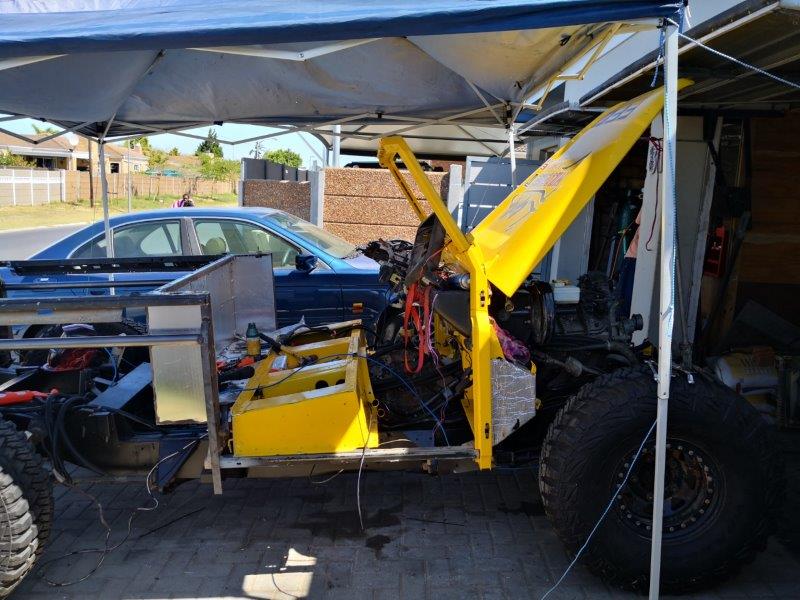

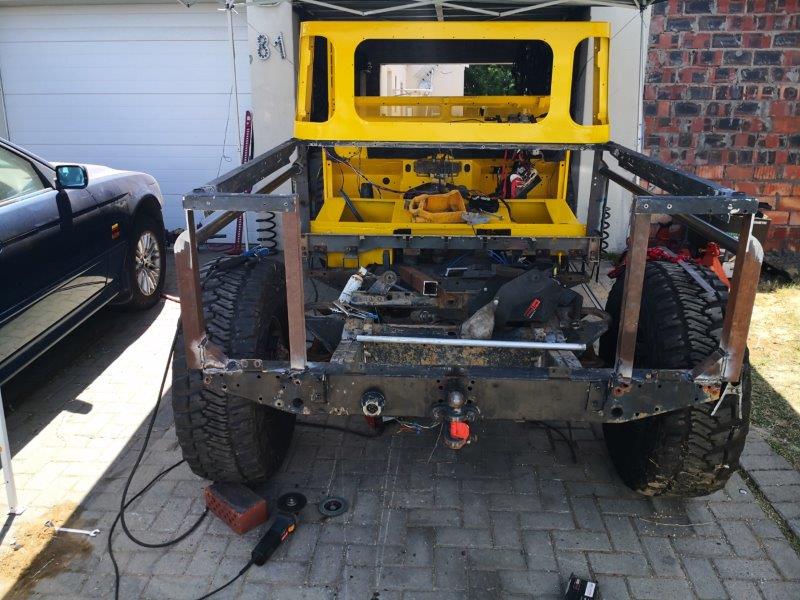

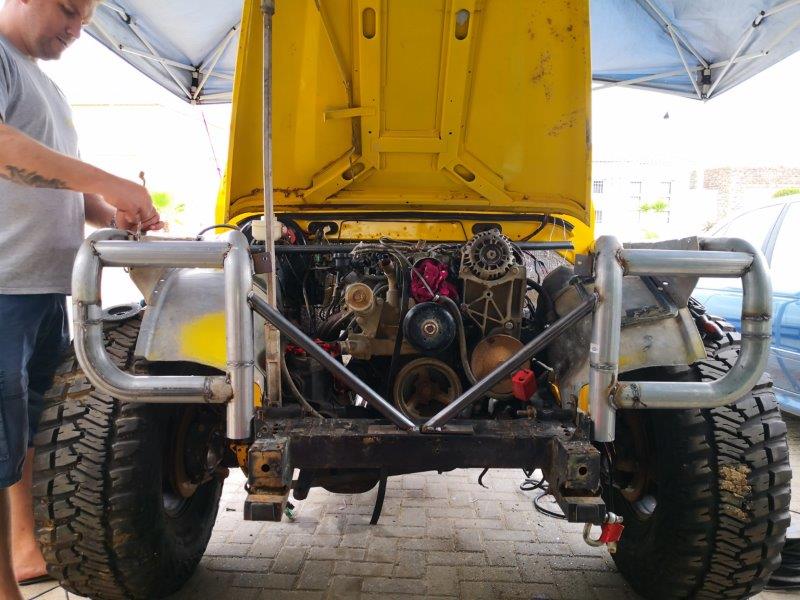

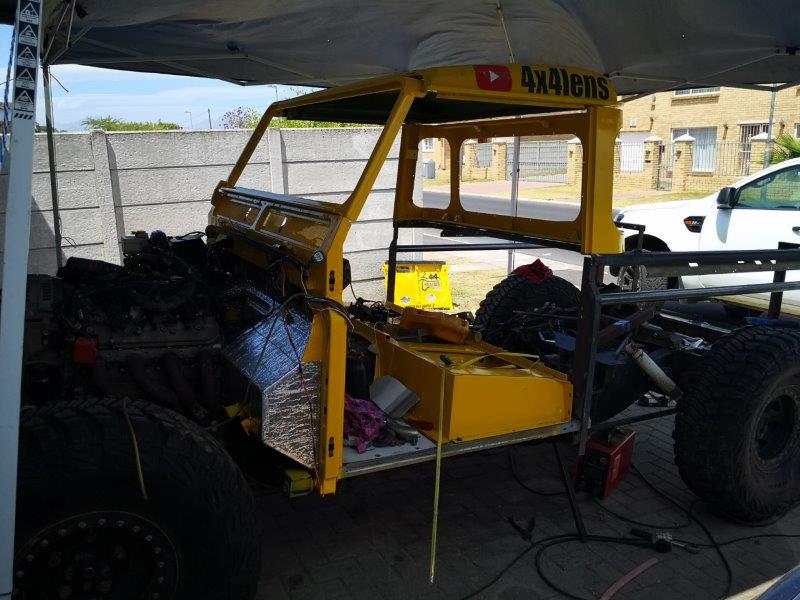

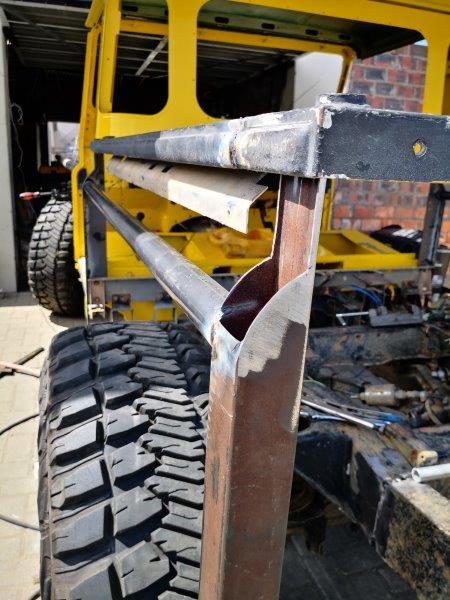

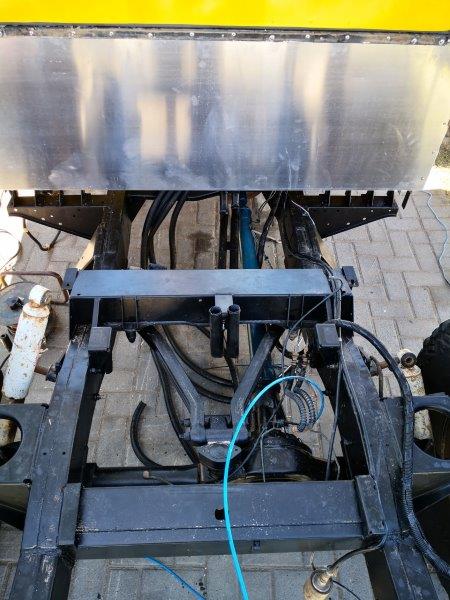

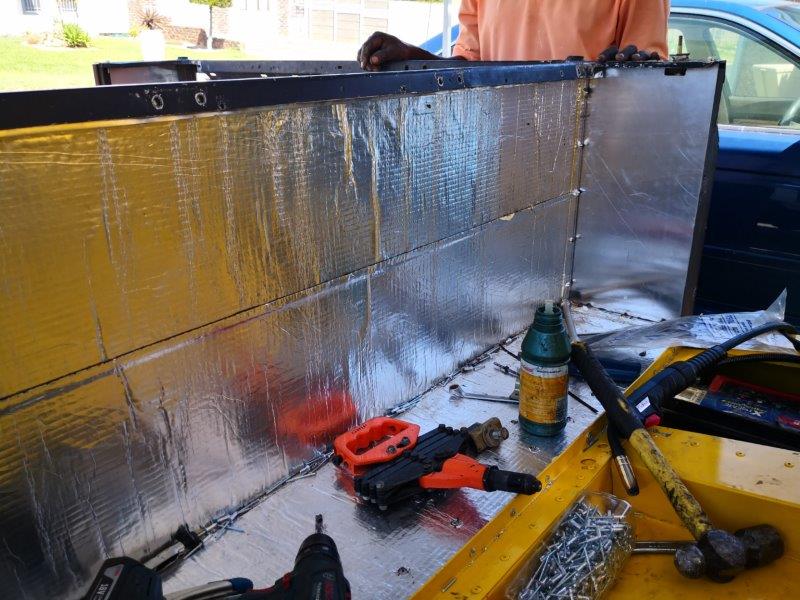

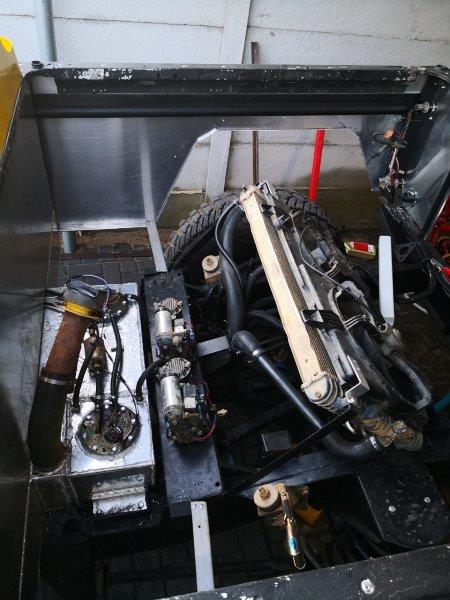

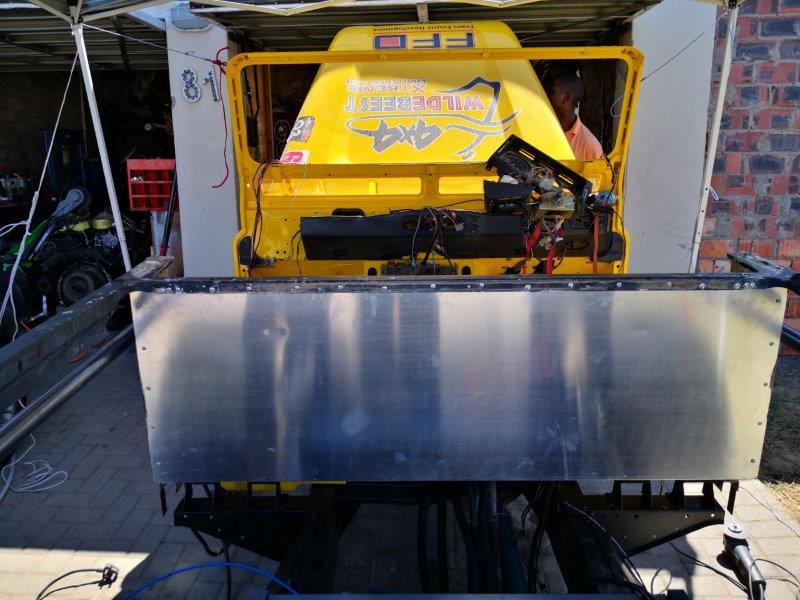

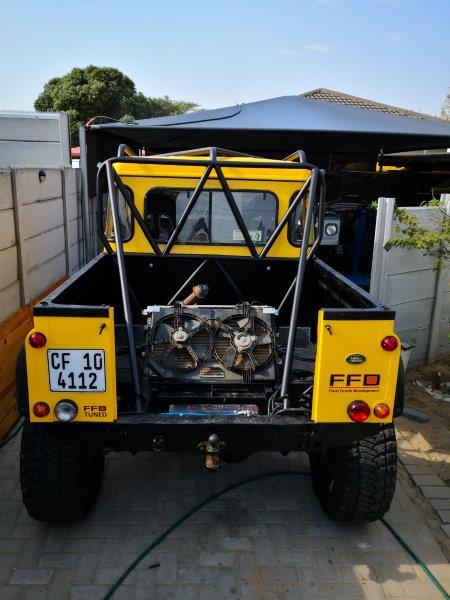

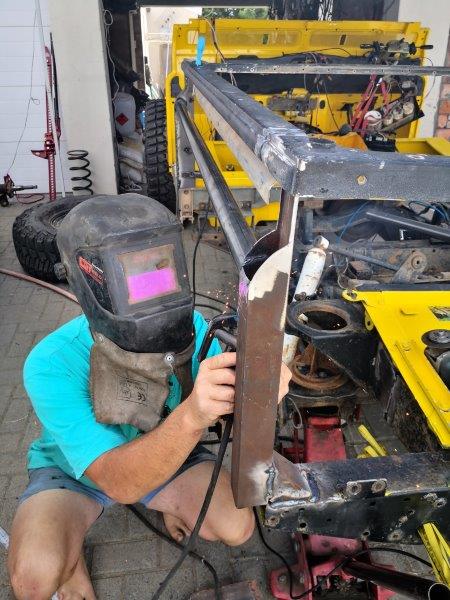

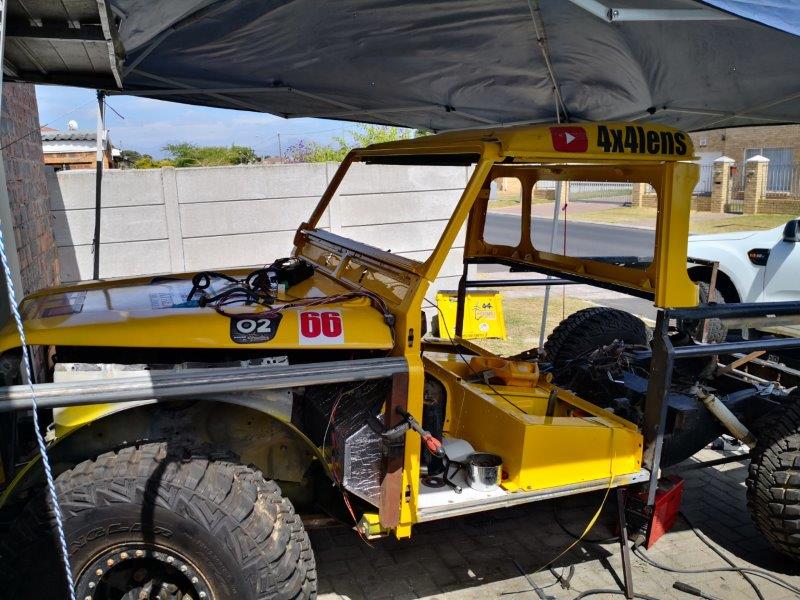

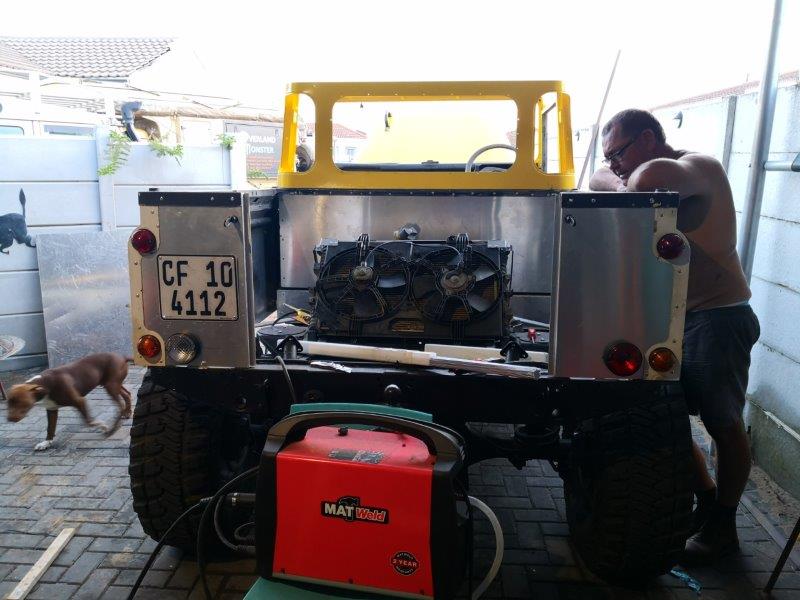

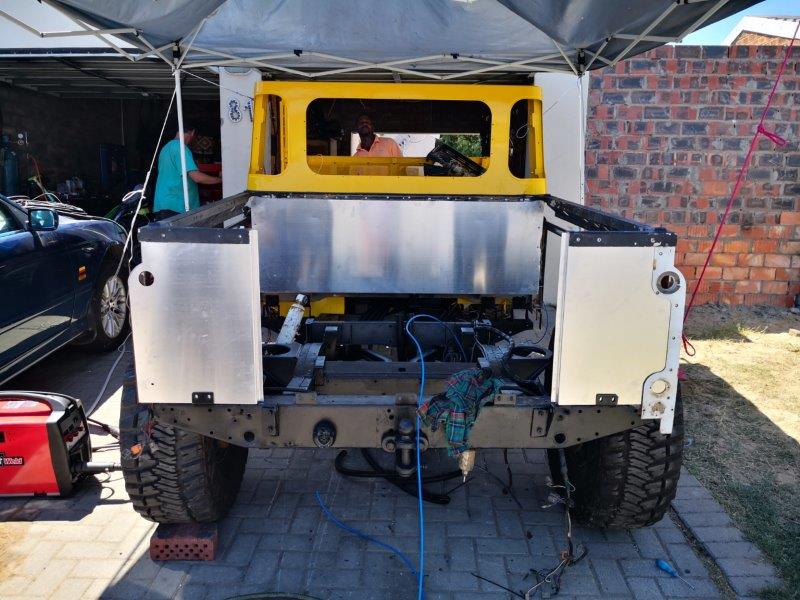

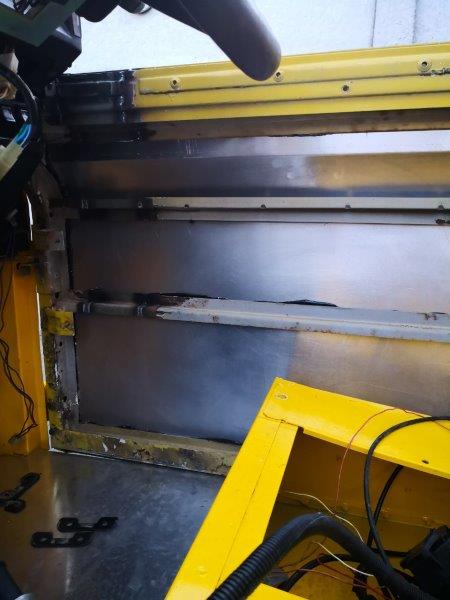

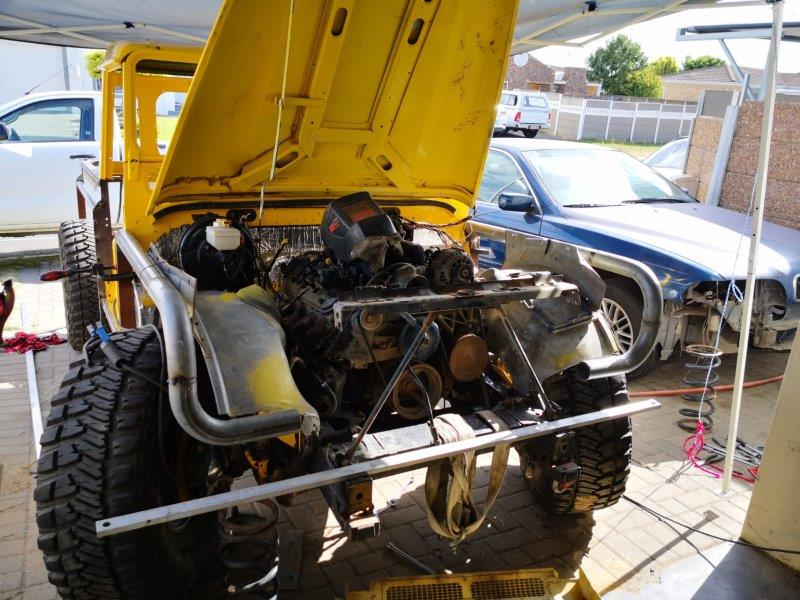

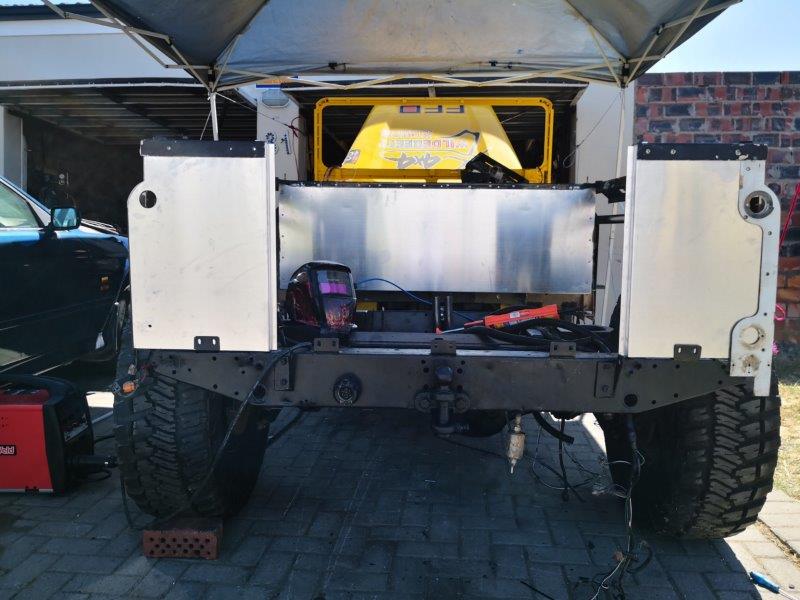

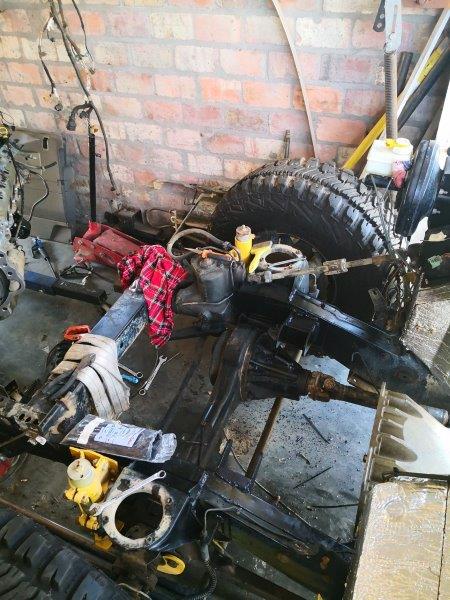

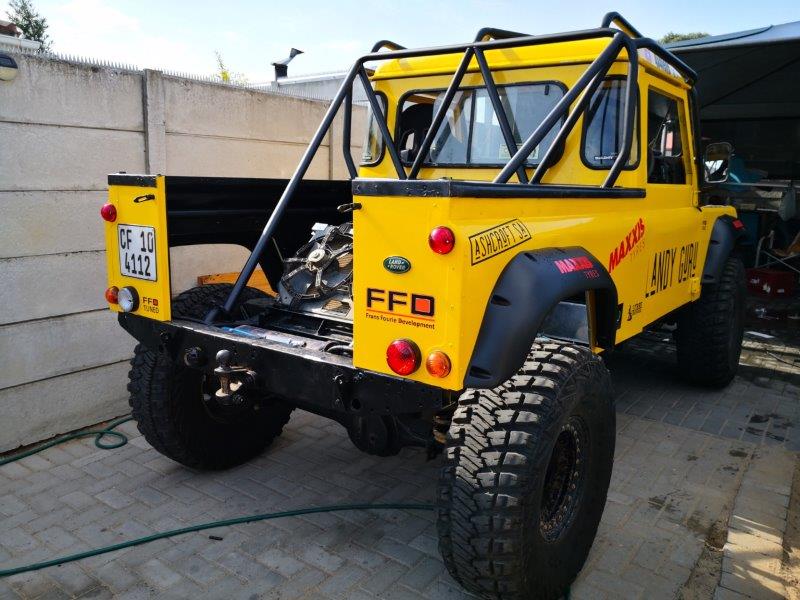

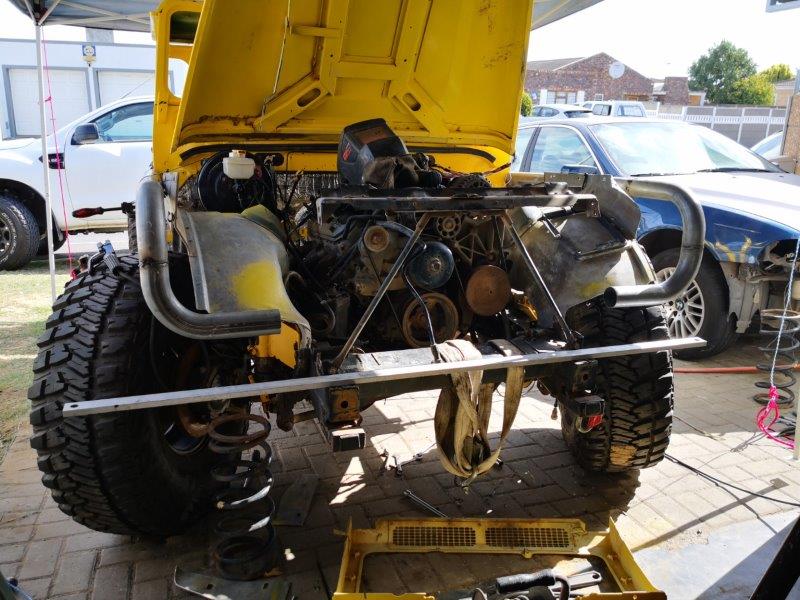

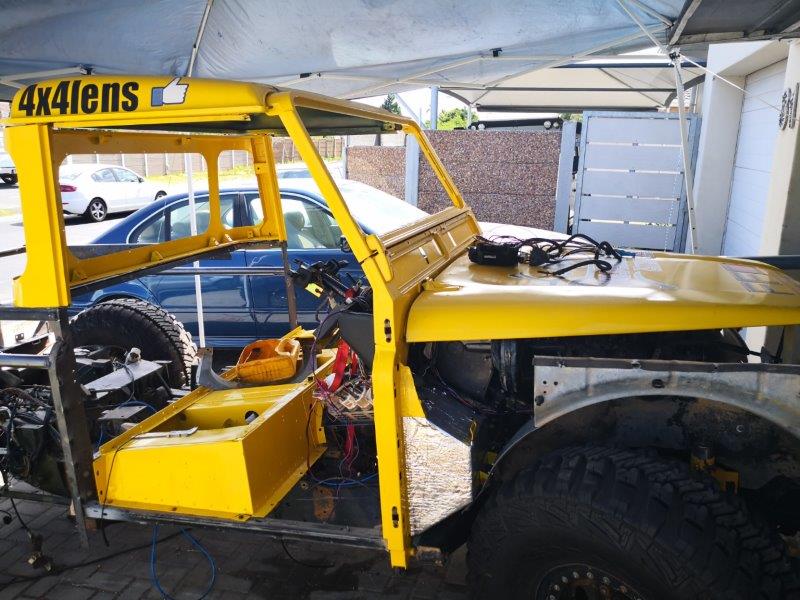

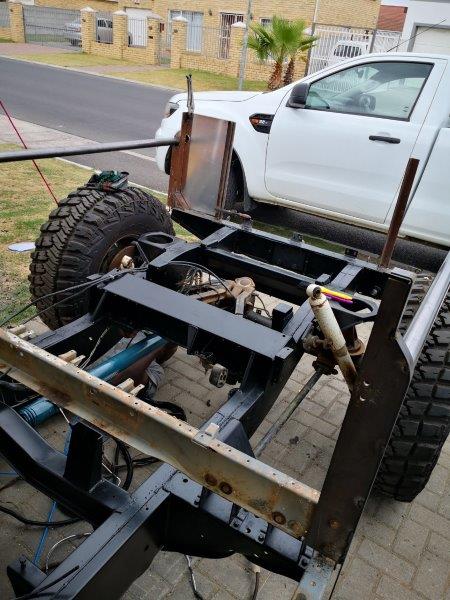

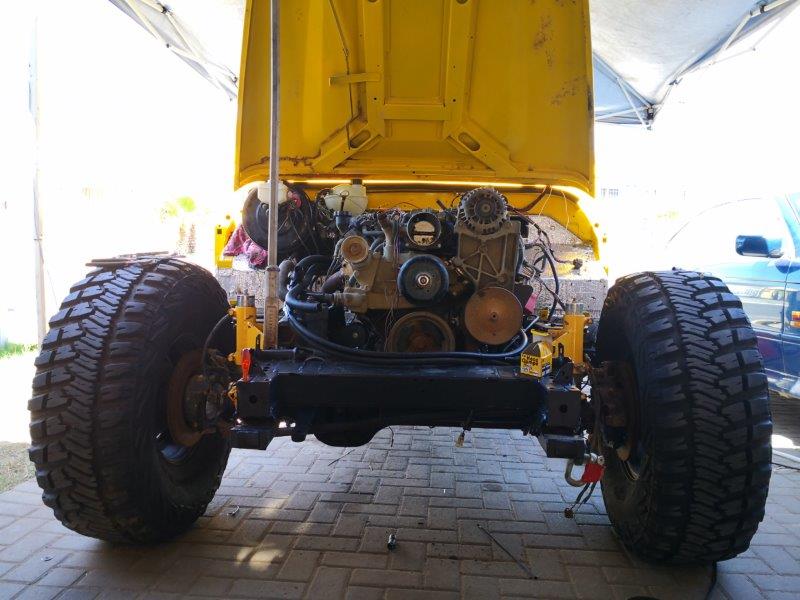

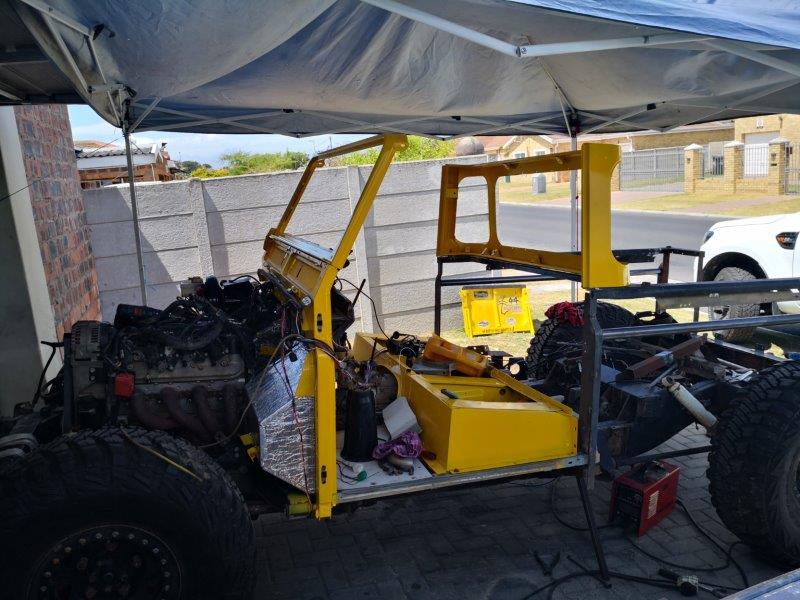

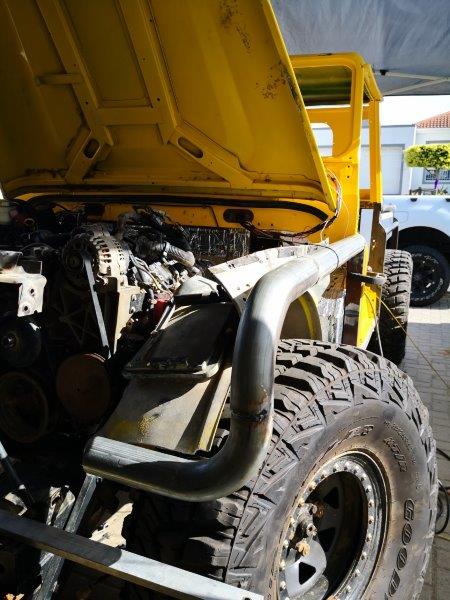

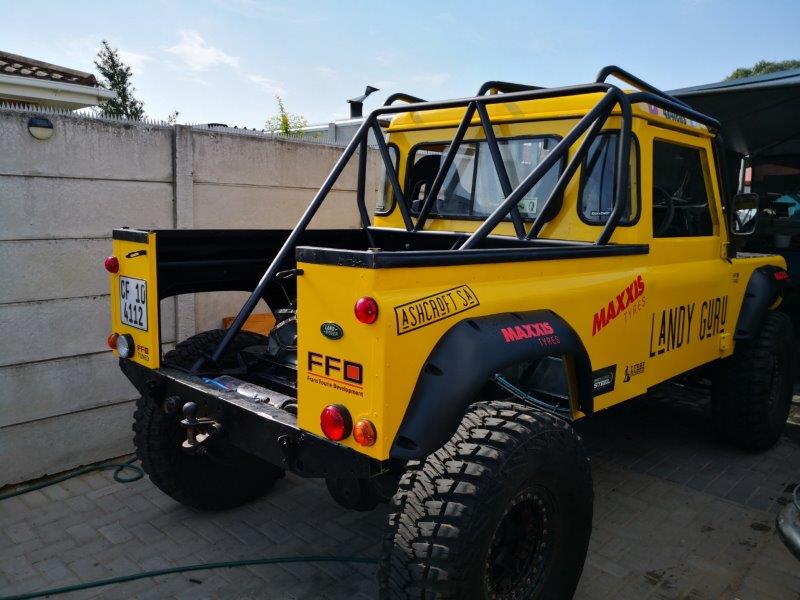

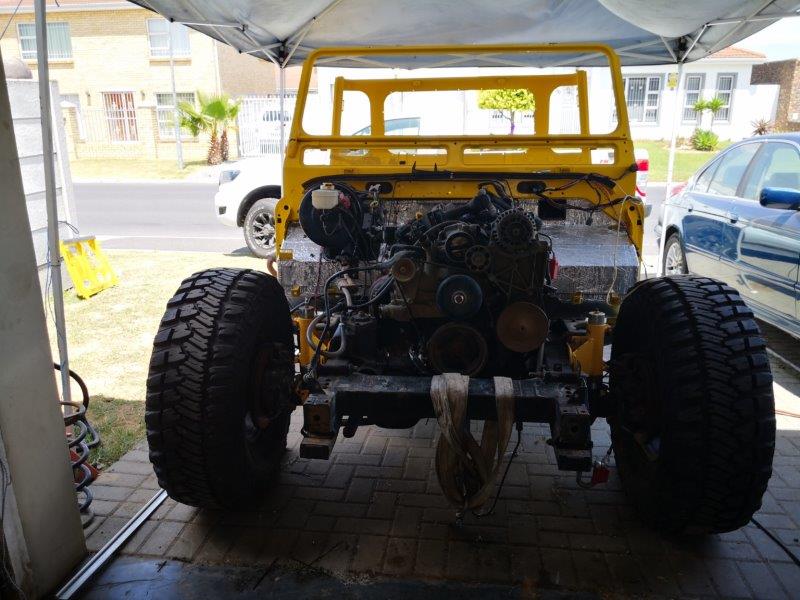

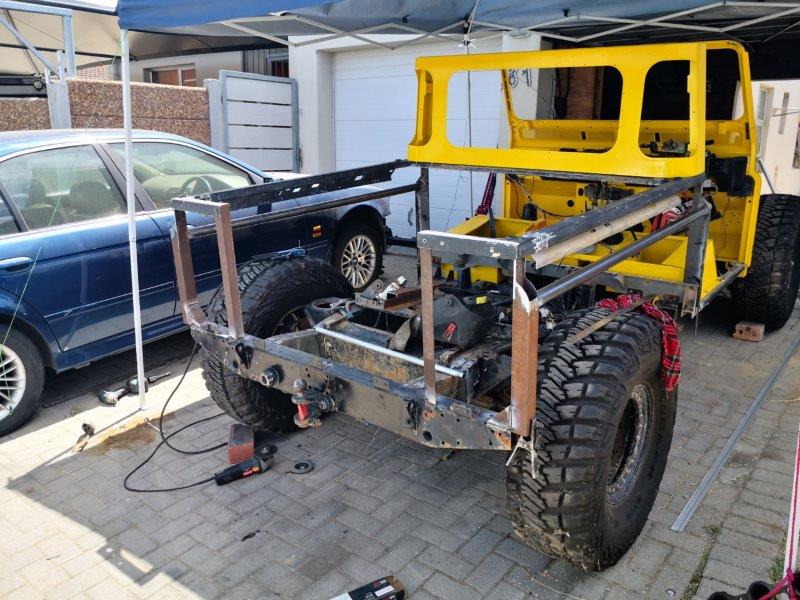

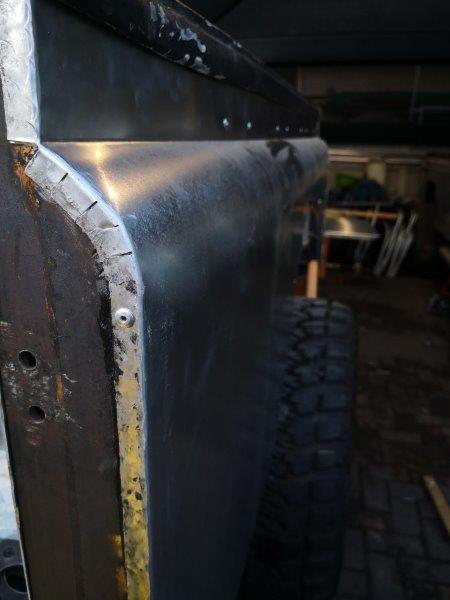

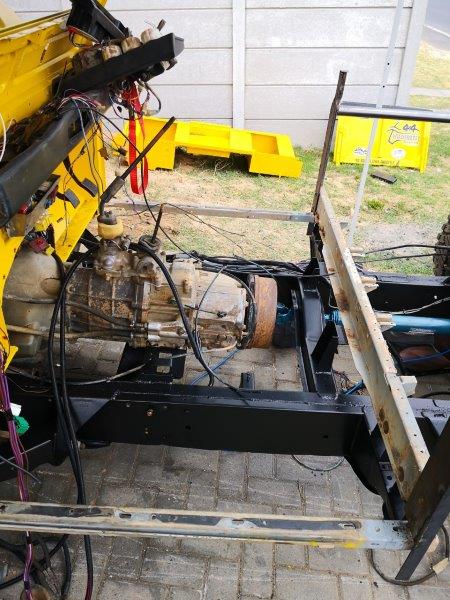

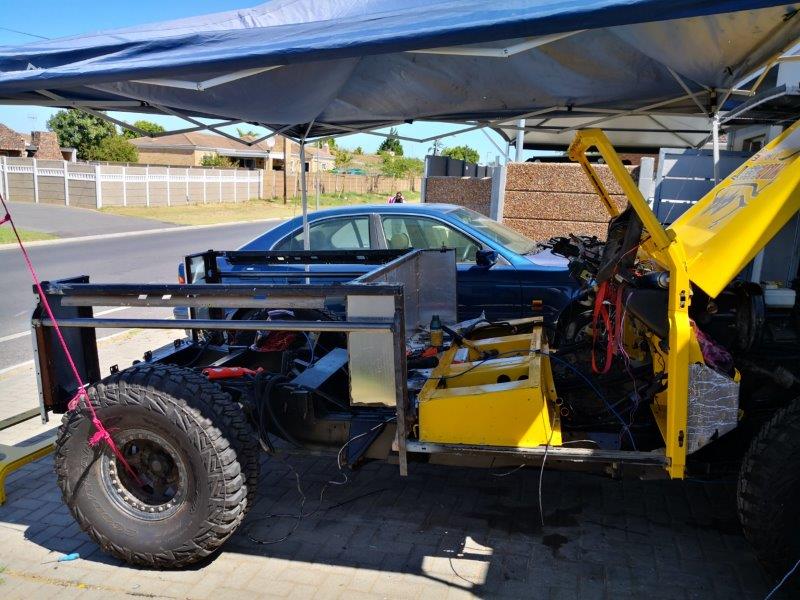

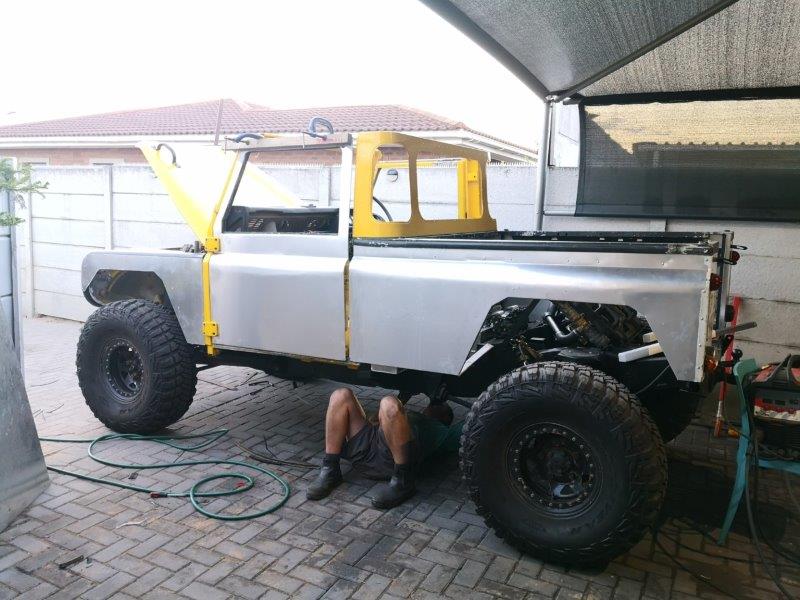

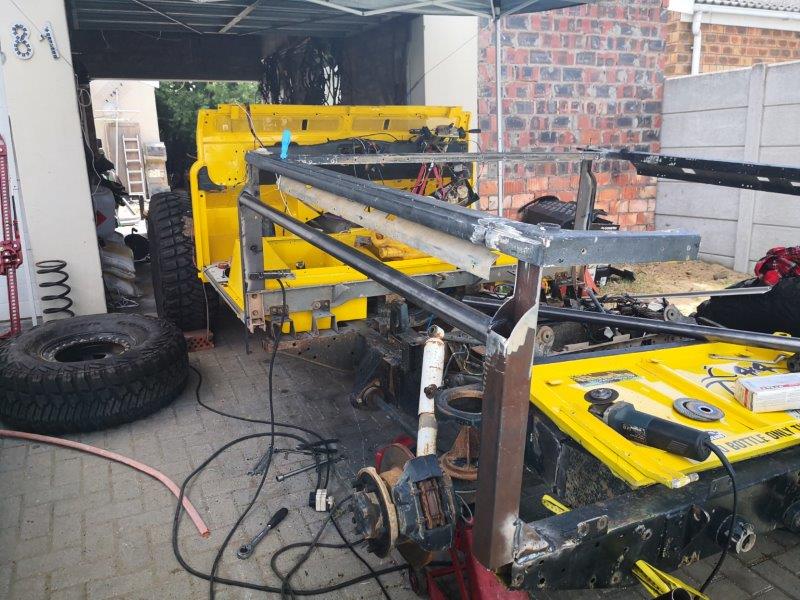

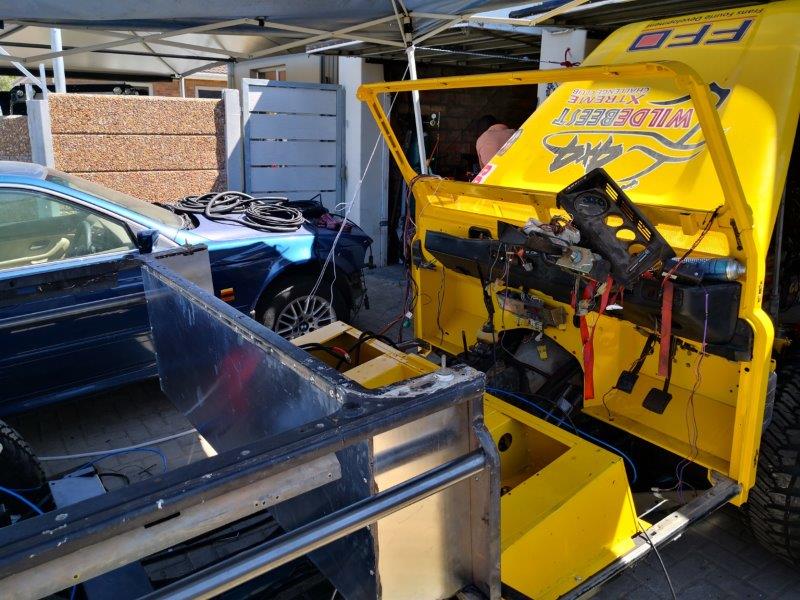

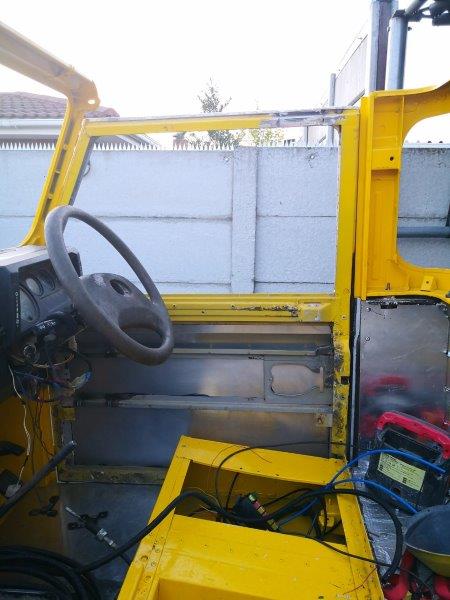

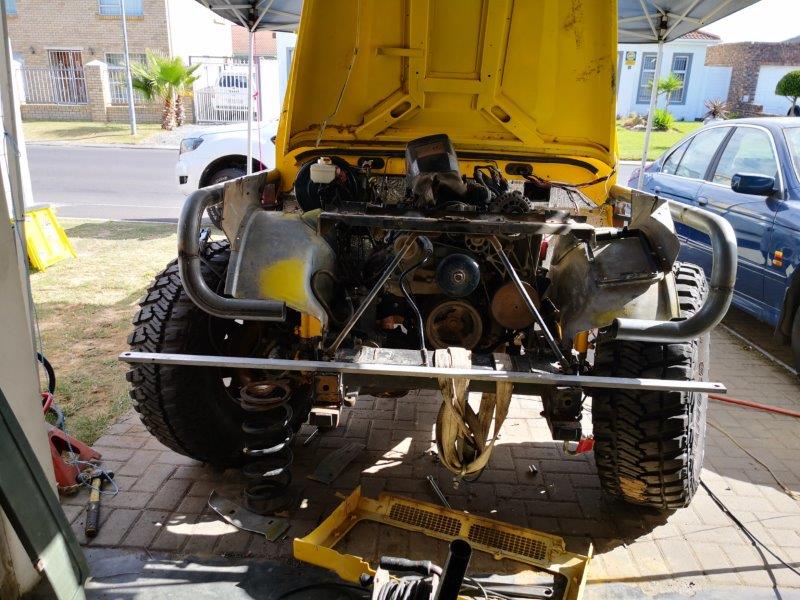

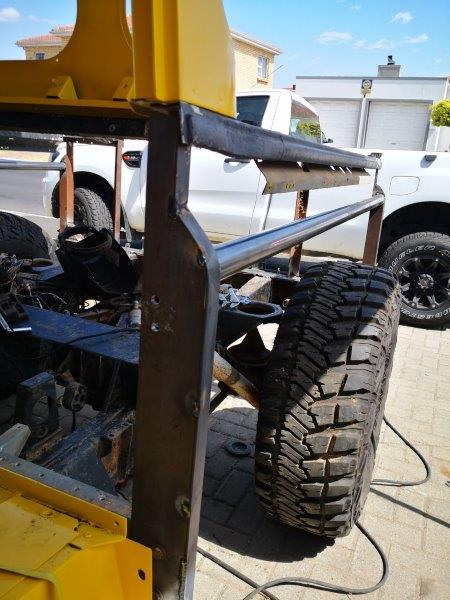

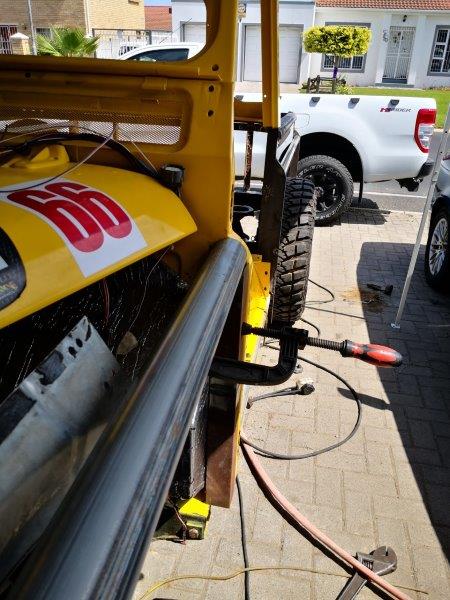

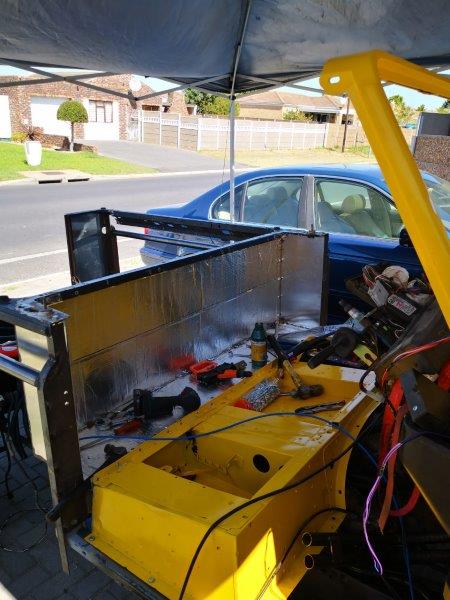

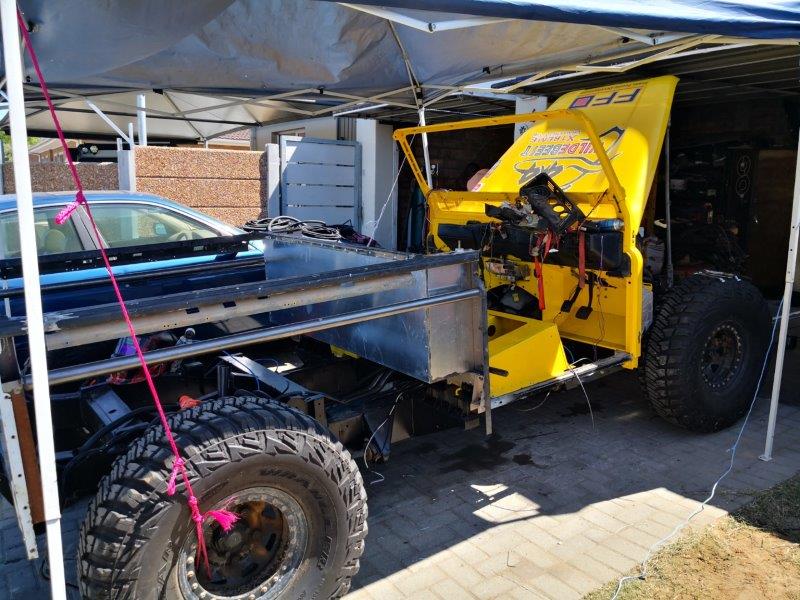

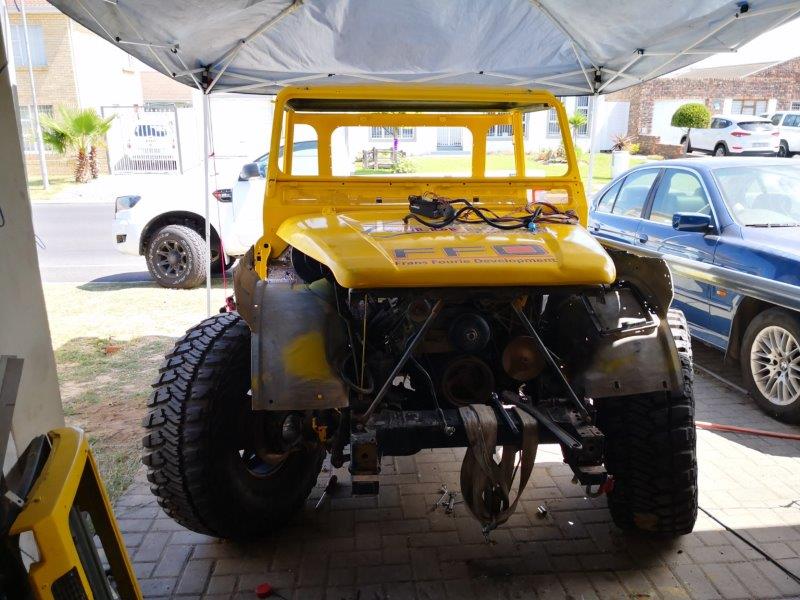

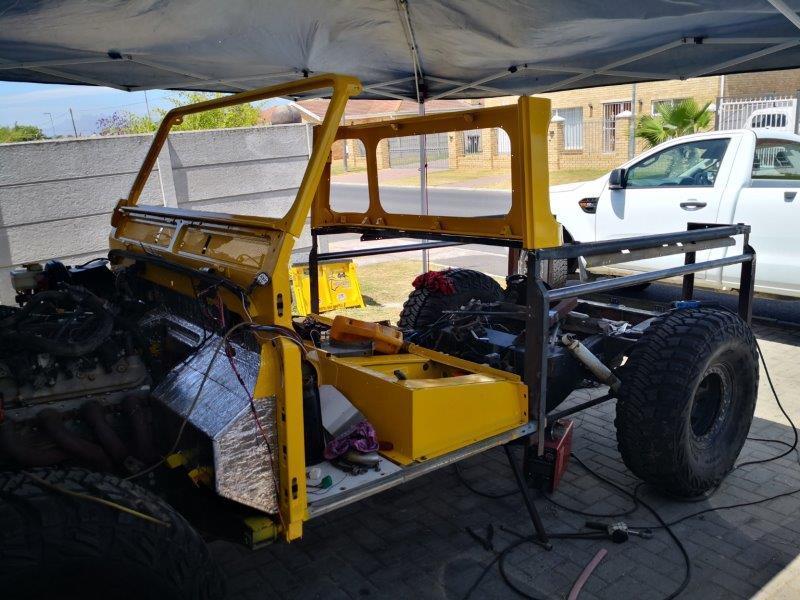

The obvious choice was a Defender. We had to reduce the weight of the car and also strengthen the car for high and low speed rollovers. Hence rebuilding the body and fitting a roll cage. We wanted to be able to run a ¼ mile in sub 10 seconds and therefor decided on an aluminum block LS3 that we fitted with a stage 3 cam, branches and dyno tuned ECU. The R380 gearbox was rebuilt with all Ashcroft components and a big oil cooler for the gearbox. Both the front and rear axles was rebuilt with all Ashcroft shafts, CV’s, pegging, and lockers. The suspension was kept to the LR design but articulation was increased to achieve 1,2m of travel across the 4 wheels. The wheels were upgraded to aluminum bead locks running 35” Maxxis Razar MT’s
