Defender 110 Pop Top Build

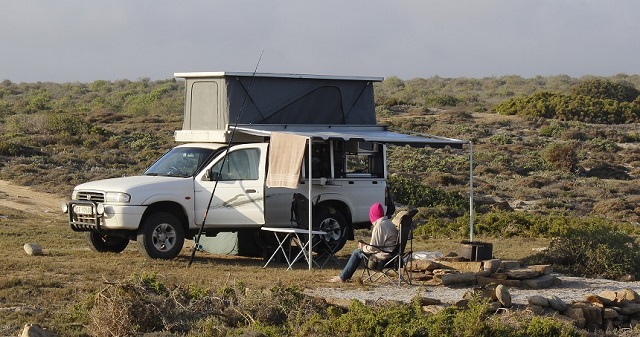

We use to do our overlanding and camping with a Mazda B series 4x4, that we fitted a homebuilt camper on. After being stuck in the camper for more than 12 hours due to Lions being around the car and us being unable to get to the driver seat did we decide to sell the pickup and convert our Defender TD5 to an overland vehicle.

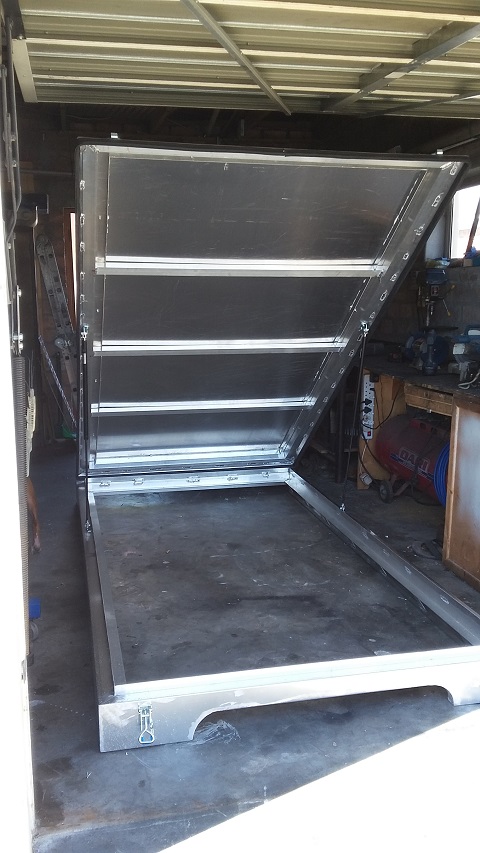

After much investigation on fitting a pop-top did we decide, due to cost that I will build it myself from aluminum, I do have the welders and know how to do this after all.

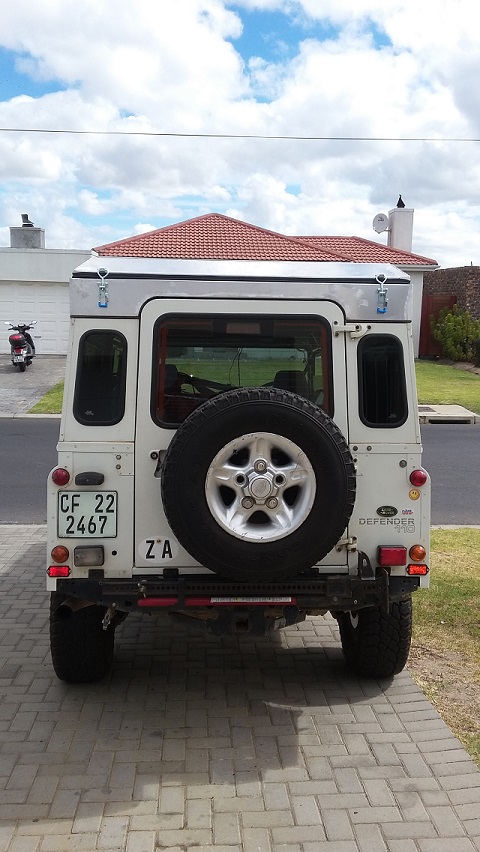

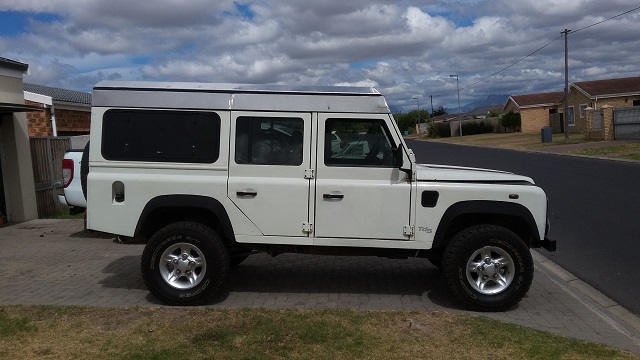

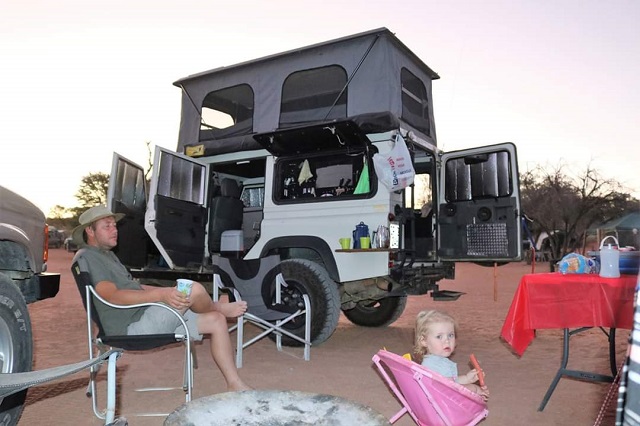

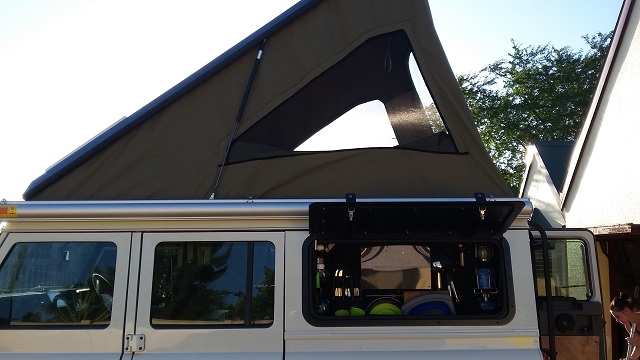

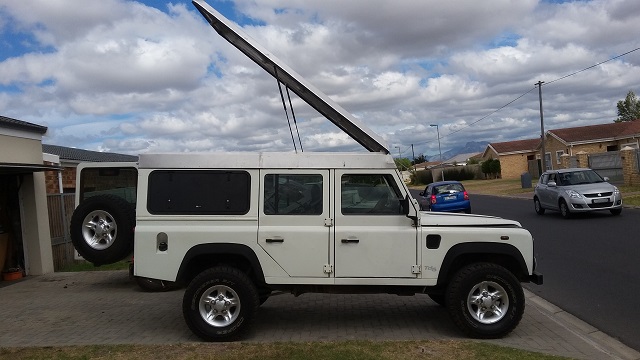

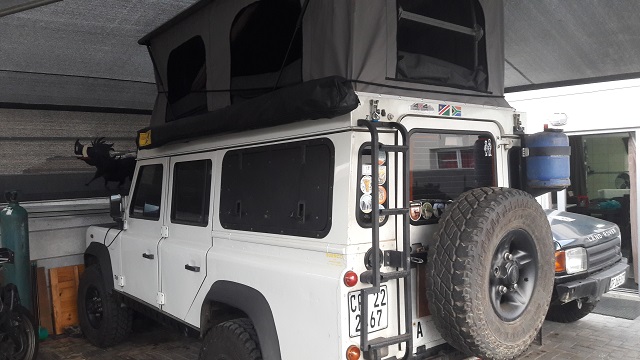

The original design was to have the clam shell lift type as most of these pop-tops have, after the second trip did we decide that the space was not sufficient and I did not like to sleep with my head away from a wall. So again we changed it, to a 4 poster pop top.

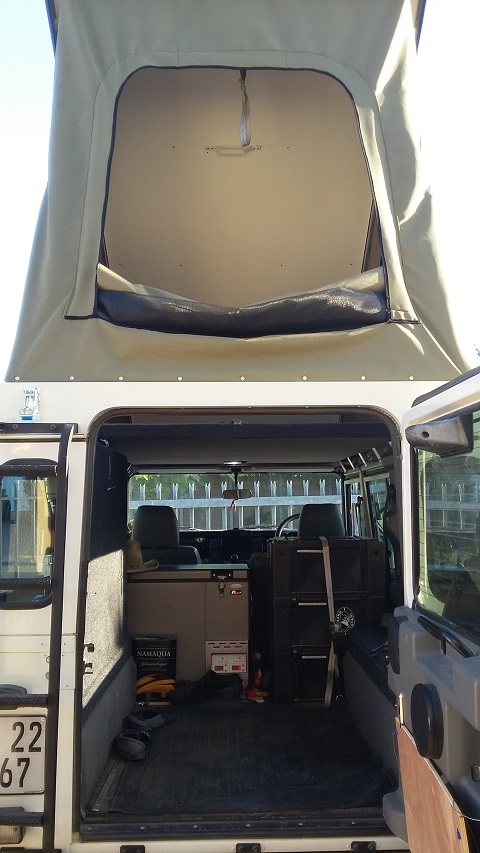

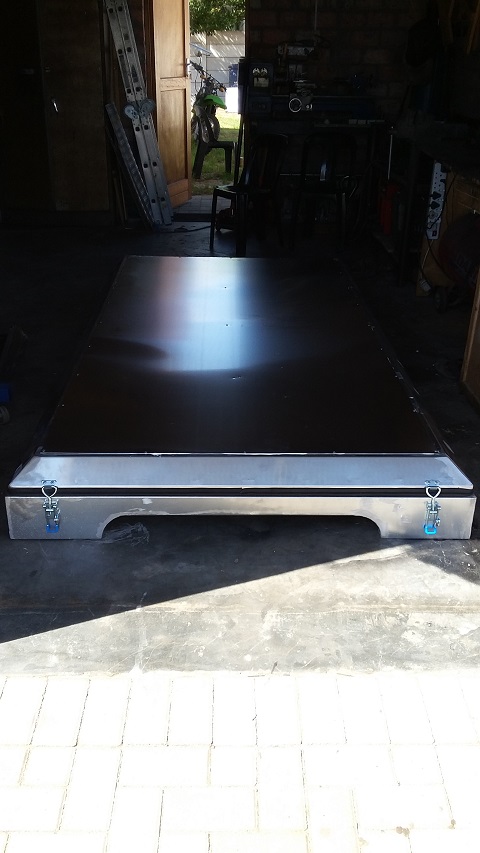

The bed also fold away to allow us to be able to stand up in the car. We removed the rear seats and fitted cupboards and two fridges (we are often in 30 degree plus temperatures). On top of this is our fuel tank range 1200 kms and we have an inboard water tank of 65 liters. A dual battery system with solar panel take charge of the fridges and all the LED lights. We then fitted awnings on both sides to provide protection against sun and rain. We also have an outside shower and porta-potti that goes with us. With this setup are we able to go off grid for 3 days at a time before we need to refill our water supply.

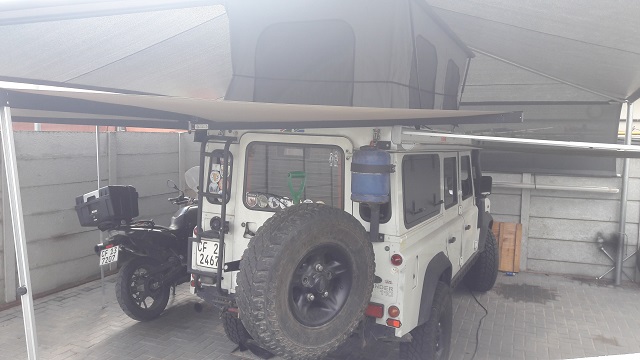

Carrying all this, is the weight of the car close to 3 metric ton, poor TD5. We upgraded the ECU and turbo boost and run now on 128 kw with 480 nm torque. We then changed the transfer ratio to 1 to 1.2 (Disco), to allow for higher cruising speeds. The suspension in the front is standard and in the back we have Defender 130 coils and long travel shocks to allow for the same articulation as on our Discovery 1. We also fitted Ashcraft lockers back and front, with chrome moly shafts and CV in the front. For tires we run Cooper Discoverer STT 255*85*16, this give us the same circumference as a standard 33 inch but with a narrower print to support the diesel.

We have been running her with this setup now for close to 3 years and just love to do trips with her.
